| Quantity: | |
|---|---|

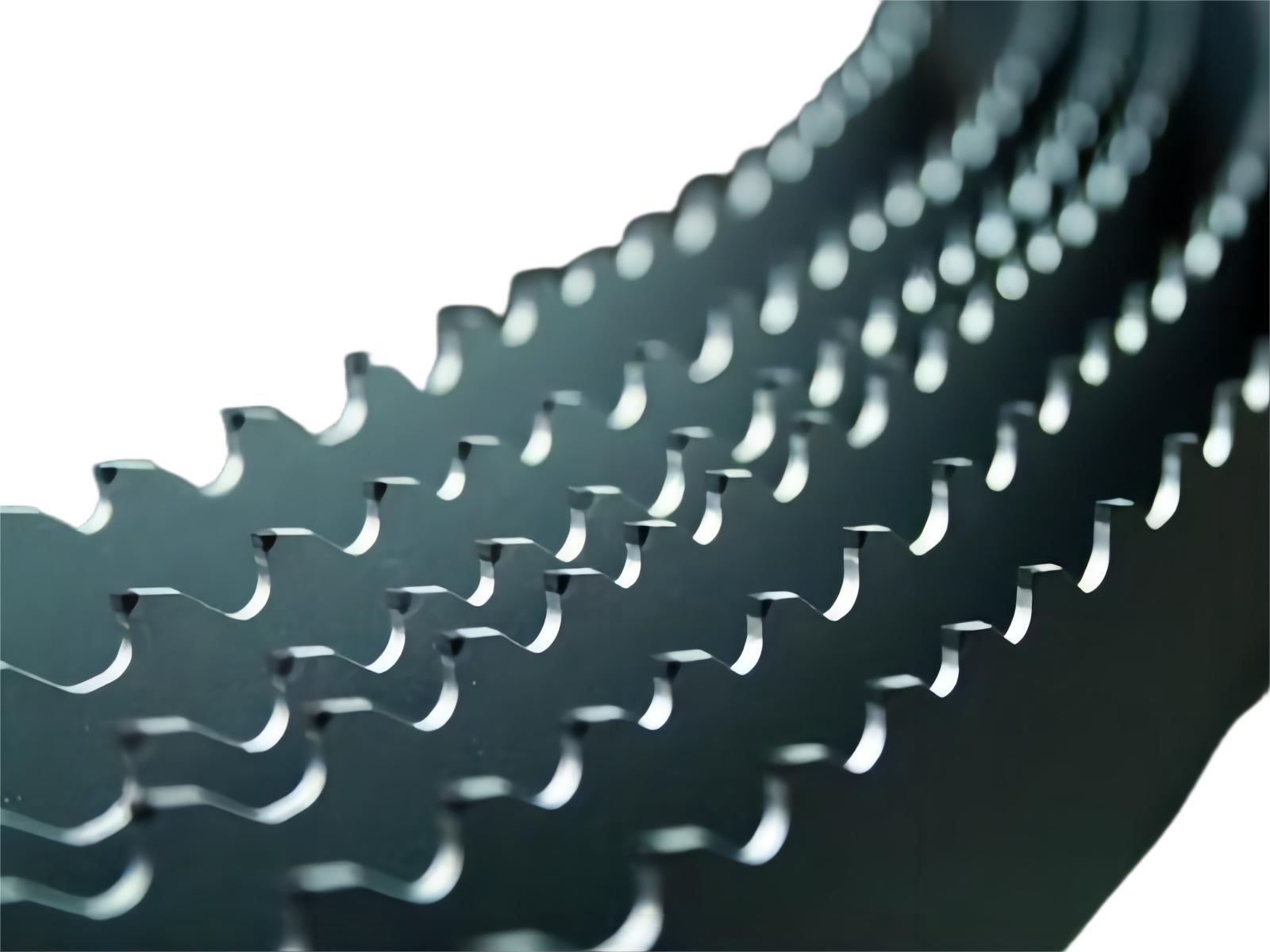

High quality Carbide Tipped band saw blades list | ||

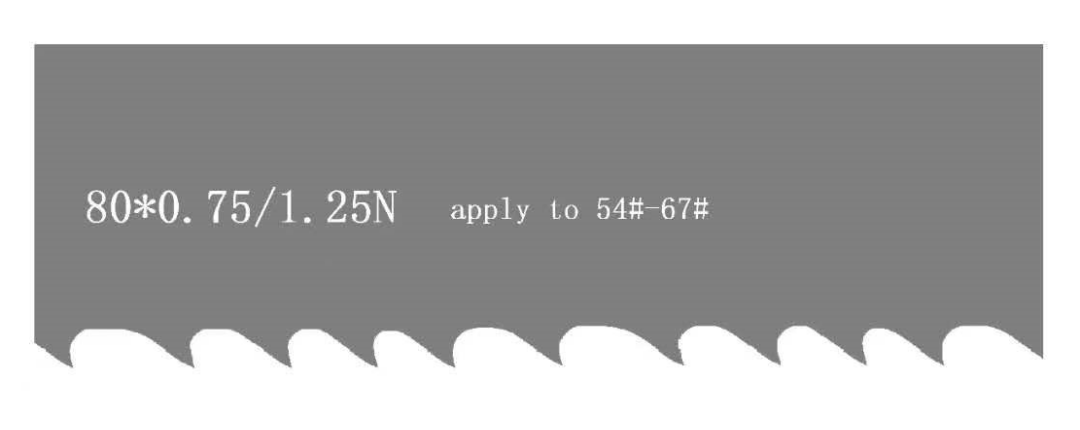

Specifications | Teeth Form | |
27mmx0.9 | 1x.035 | 3/4 2/3 |
34mmx1.1 | 1-1/4x.042 | 3/4 2/3 |
41mmx1.3 | 1-1/2x.050 | 3/4 2/3 1.7/2.5 1.4/2 |
54mmx1.6 | 2x.063 | 3/4 2/3 1.7/2.5 1.4/2 1/1.5 0.75/1 0.75/1.25 |
67mmx1.6 | 2-5/8x.063 | 2/3 1.7/2.5 1.4/2 1/1.5 0.75/1 0.75/1.25 |
80mmx1.6 | 3x.063 | 2/3 1.7/2.5 1.4/2 1/1.5 0.75/1 0.75/1.25 |
1,High hardness, high red hardness, high wear resistance;
2,It is difficult to cut the metal materials, such as titanium alloy, stainless steel, hardened steel, raw material paste, nickel base alloy, cast steel, etc., can be cut freely;
3,Unique tooth shape design, with excellent chip removal performance;
4,Saw back refining technology, improve the fatigue strength of band saw.
Chemical composition of cemented carbide:
碳（C) | 硅（Si) | 锰（Mn) | 磷（P) | 硫（S) | 铬（Cr) | 钼(Mo) | 钒(V) | 钨（W) | 钴（Co) | |
cemented carbide | Co:10% Residual refractory metal carbides:Wc、Tic、Nbc、Tac、Vc | |||||||||
HGS40 | 0.40 | 0.30 | 0.45 | 0.015 | 0.005 | 3.00 | 1.50 | 0.25 | ||

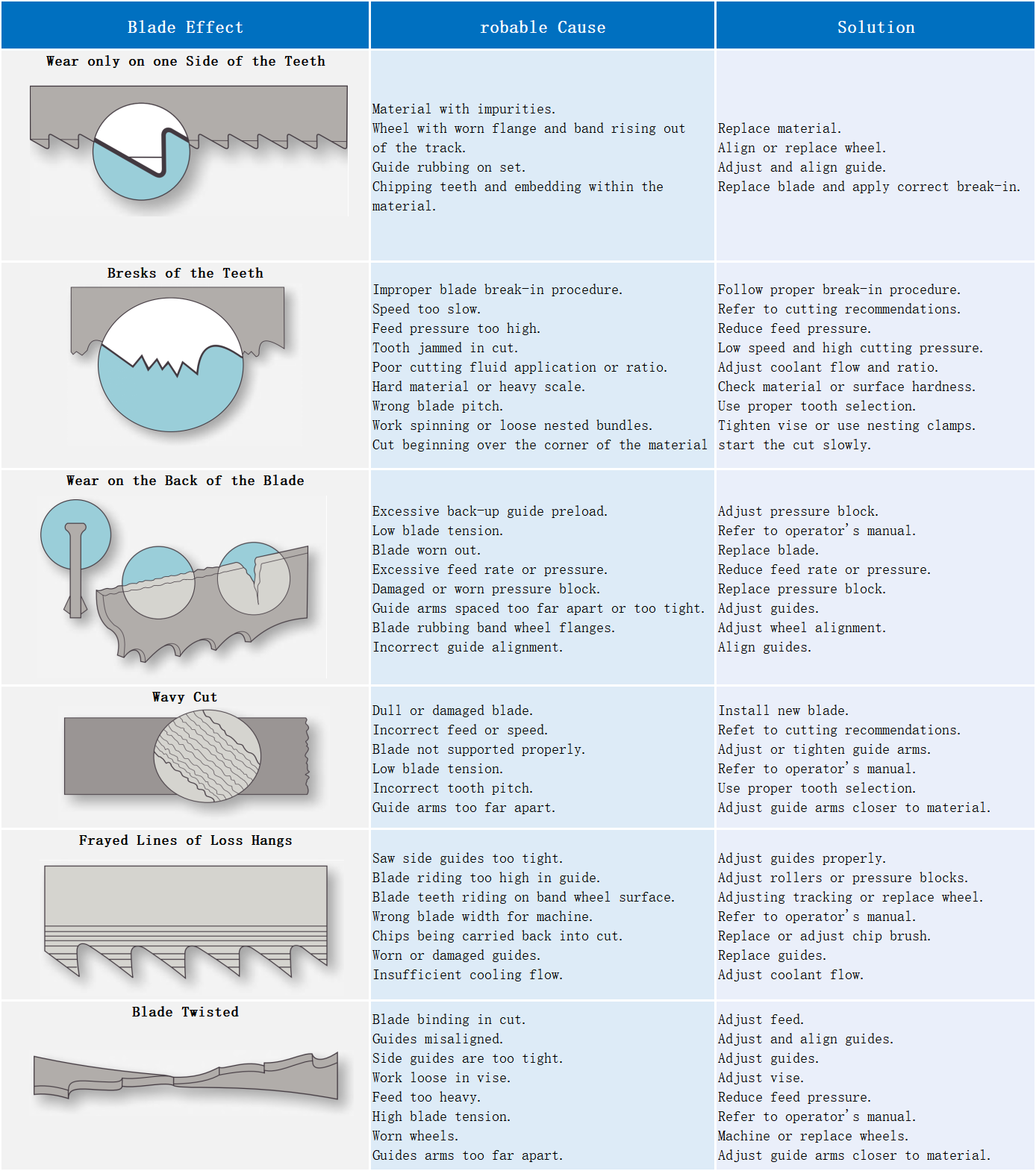

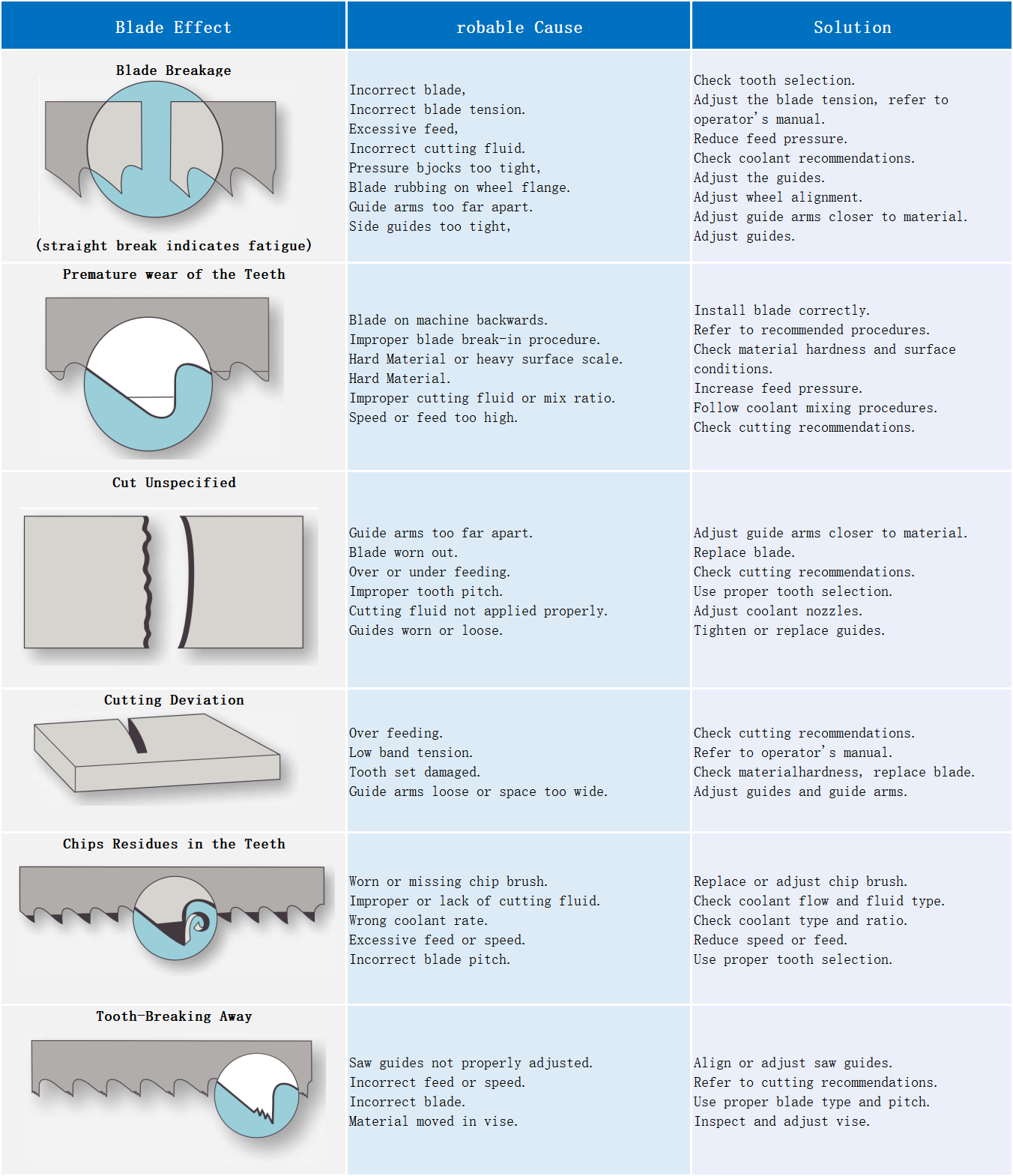

Cutting fault analysis :
Top appliance:
Application Scenario:
A corner of the workshop
Packaging and Shipping:

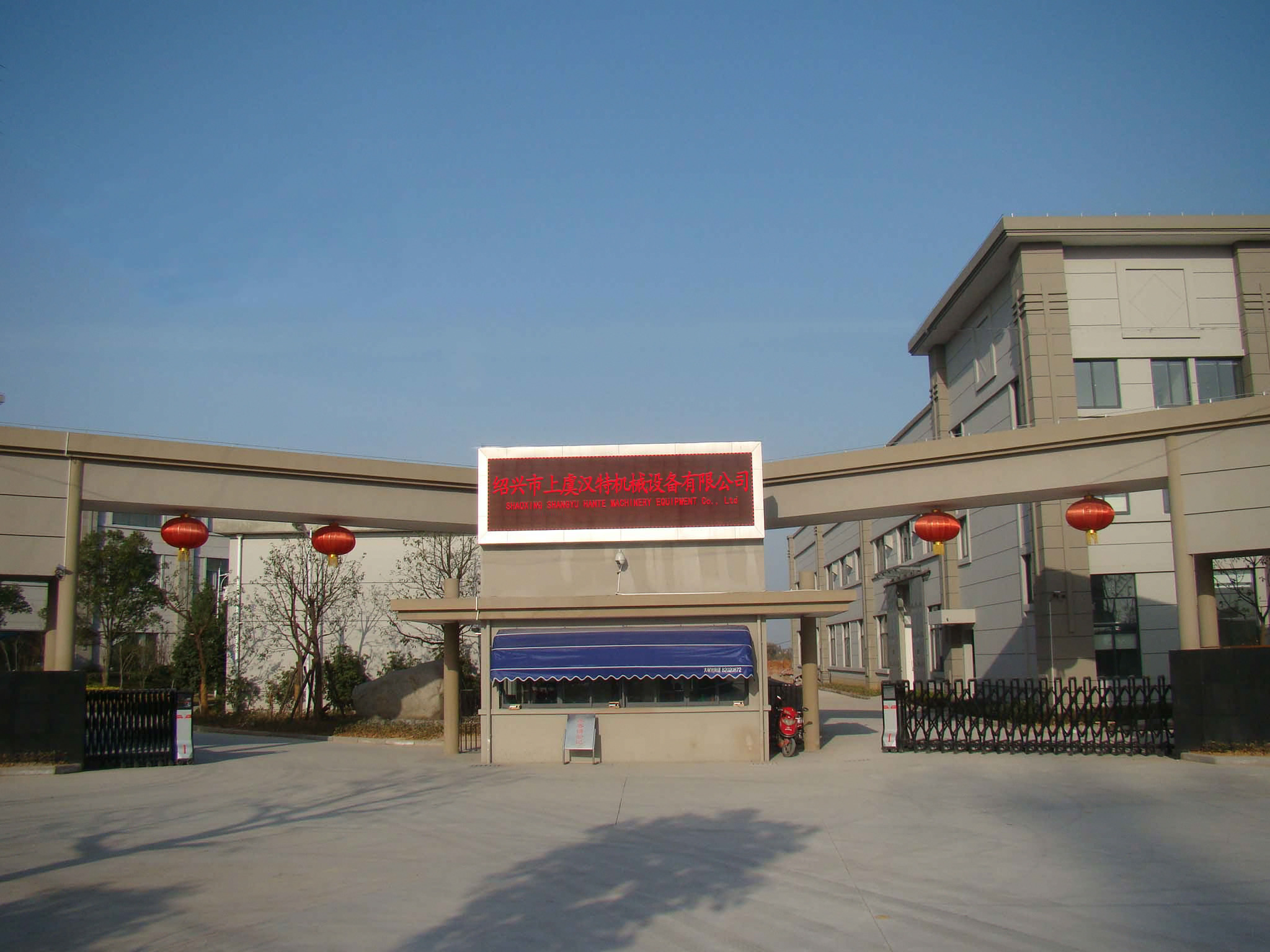

Factory Tour:
Shaoxing Shangyu Hante Machinery Equipment Co. , LTD is specialized in producing bimetal band saw blades, carbide band saw blades, food saws, woodworking alloy band saw blades and Selling high-speed circular saw machines, sawing machines, circular saw blades, and food processing machinery.
Our advantage:
1. Factory with 25 years of experience in the production of bimetallic band saw blades
2. Products have been exported to more than 60 countries and regions
3. All products have been strictly tested and quality assurance is provided
4. Provide after-sales service support
5. Main products: bimetal band saw blades, carbide band saw blades, high-speed circular saw machines, sawing machines, food processing machinery.
